GOOADA anti-corrosion tape is a high-performance metal protection material built on a petroleum microcrystalline wax compound, supplied as a system of tape plus companion primer. It forms a fully sealed layer on application and is purpose-designed for irregular parts such as bolts, flanges, weld seams and tank annular plates.
Six Core Properties
Verified by SGS testing and field serviceProduct Line · Two Types, Two Colors + Primer
Covering -45°C to +110°C| Model | Temperature | Typical applications | Notes |
|---|---|---|---|
| Standard Tape | -45°C to +60°C | Bolts, flanges, valves, valves in flooded underground pits, joints, pipe supports, weld seams, tank annular plates | General |
| High-Temperature Tape | -45°C to +110°C | High-temperature tank annular plates, supports under insulation, ring plates, weld seams | High temp |
| Silver-Gray Tape | Outdoor / condensation | Coastal pipelines, condensation-prone lines, valves in underground pits — condensate forms on the tape surface while the metal stays dry | UV resistant |
| Anti-Corrosion Primer | Companion product | Petroleum microcrystalline wax compound + titanium dioxide + rust inhibitor; surface prep to Sa 2 is sufficient; prime and wrap in one pass | Companion |
Application · Four Steps
No hot work · No shutdown · Can be applied in light rainHand or power-tool cleaning to Sa 2 is sufficient — no blast cleaning to Sa 2.5 required
The primer penetrates residual rust and seals the substrate; proceed as soon as it is applied
Stretch, wrap and conform around irregular parts; overlap and press firmly
Press out air and compact the edges to form an immediate full seal
Compared with Conventional Methods

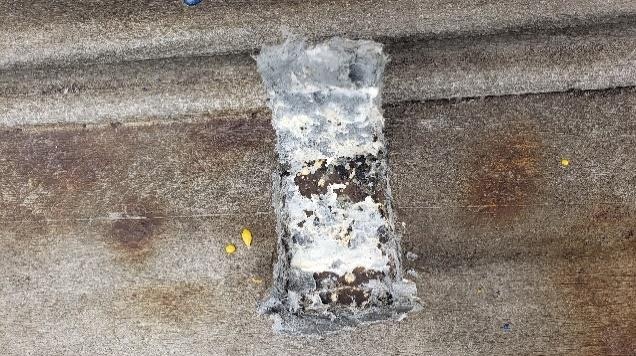

Detached in multiple places with loss of protective compound; the leftover compound is laborious to remove; 7–8 pockets of standing water found under the annular plate. Typically replaced 2–3 times within 10 years.
Opened for re-inspection: surface layer dry and rust-free; no cracking or edge lifting, and tank deformation between full and empty states does not affect protection.
| Criteria | Conventional coatings | Petrolatum tape | GOOADA tape |
|---|---|---|---|
| Service life | Recoating every 3–5 years | Replaced 2–3 times in 10 years | 30+ years, no replacement |
| Surface preparation | Sa 2.5 blasting | Rust removal + stripping the old compound | Sa 2 prep only |
| Hot work / shutdown | Some steps require shutdown | No hot work | No hot work · No shutdown |
| Fit on irregular parts | Cracks and peels at edges | Limited conformability; prone to lifting and detachment | Conforms without cracking or lifting |
| Sealing | Pinhole leaks in the coating | Water pools where detached | Fully sealed · Zero leakage |
Cost-Benefit Analysis

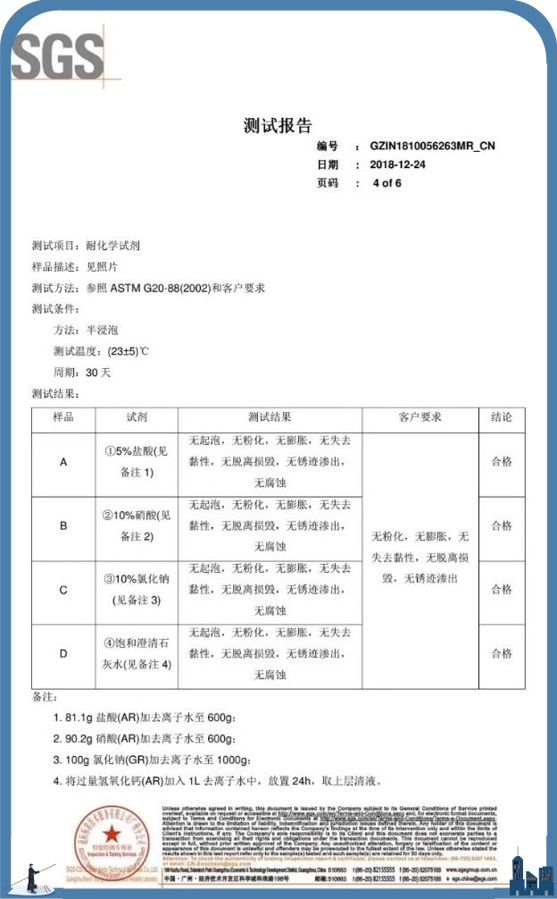

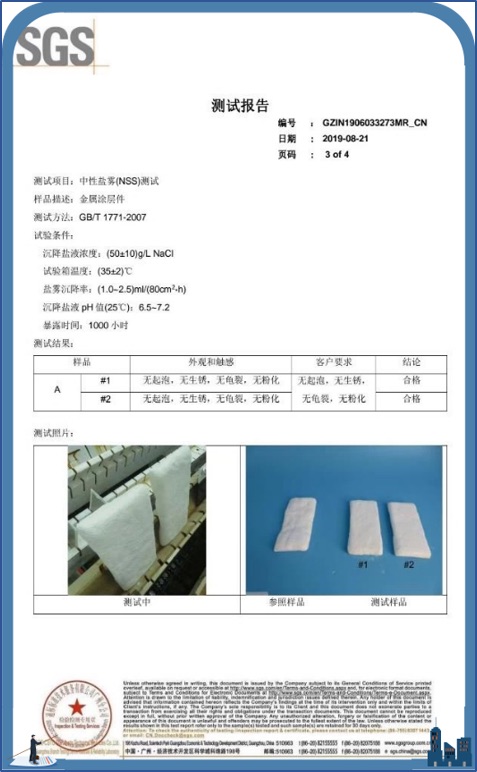

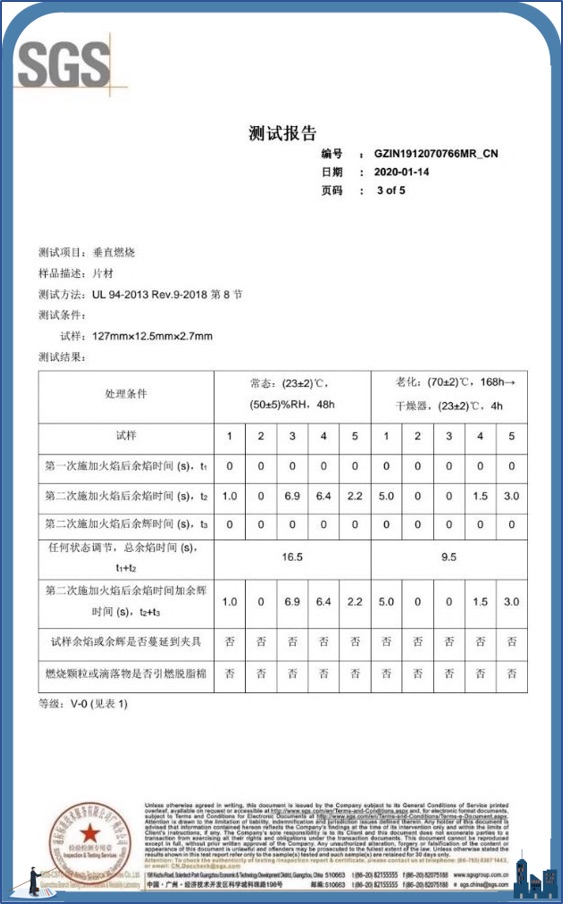

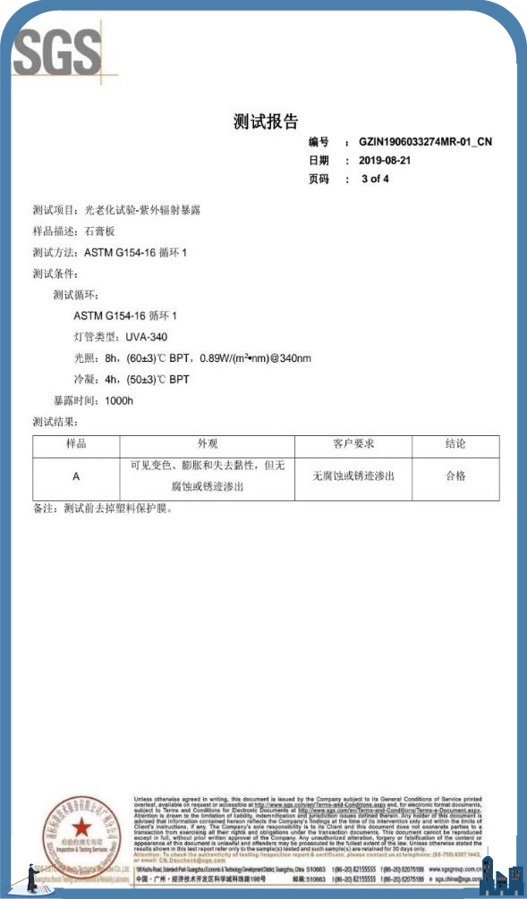

Over a 30-year service periodSGS Performance Testing · Chinese Patent
